Product Details:
|
| Capacity: | 500L | Feature: | Durable |
|---|---|---|---|
| Pallet: | Galvanized Steel | Framework: | Galvanized Steel |
| Air Permeable Device: | Breathable Plug (two-way Breathable) | ||
| High Light: | medium bulk container,500L Medium Bulk Container |
||

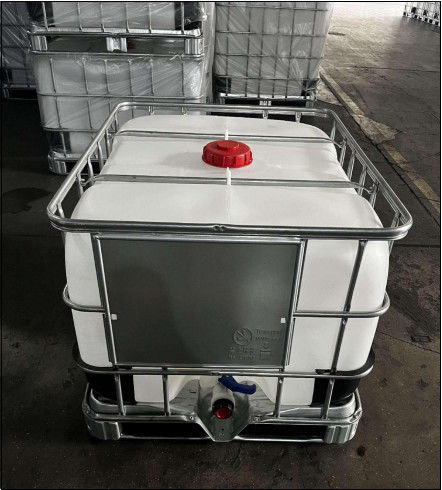

500L horizontal composite medium bulk container full steel pallet frame
Specifications:
| Nominal/full mouth capacity (L) | 550 ≥600 |
| Nuclear weight (kg) | 45±2 |
| Stacking weight (kg) | 2970 |
| Maximum allowable weight (kg) | 1162 |
| The maximum allowable density (g/m) | 1.9 |
| Inner container Material | HDPE |
| The weight of the inner container (kg) | 11.1 |
| Filling diameter (mm) | 142 |
Advantage:
Chemical IBCs are transportable bulk containers that are used to store large quantities of hazardous liquids.
Due to the rectangular design of the IBC, this type of chemical container has a larger capacity than a drum. It’s also much easier to stack and transport due to its angular design.
Rigid IBCs are constructed from a hard, durable plastic and feature a metal outer cage that protects the plastic chemical container. They are often used across a range of operations including construction, manufacturing, mining and agriculture.
Detailed Product Description:
Other detailed date for our IBC Tank 500L
1. Material of inner Receptacle: HDPE
2. Material of outer Casing :Galvanized steel DCD51D
3. Material of pallet: Galvanized steel DC53D
4. Material of seal :EPDM,FKM,Nitrile,PE
5. Valve and Material:Ball Valve DN50 or Butterfly Valve DN 50
6. Stacking Test Weight;4056kg
7. Dropping Test Height:1.9mm
8. Hydraulic Test pressure:100kpa
9. Vibration Test:Amplitude:25±5%mm,Time Duration:1 hour
Quality control:
We attach great importance to quality control and carry out production and quality inspection in strict accordance with the standards to ensure the quality and safety of products. We have also formulated a series of quality control measures to comprehensively supervise and manage the production process to ensure the consistency and reliability of products. Stacking test - 3 heights under the maximum bearing capacity (24 hours). Drop test – maximum weight at 0 ° F (48 hours) – 6 'drop. The cover is made of closed cell foam or silicone gasket. Cover closing instructions are included in each drum. Buckets are very suitable for: safe storage, treatment and transportation of hazardous materials, leakage control and cleaning of hazardous materials, containment of leakage tools, original shipping containers, biological waste treatment and incineration
Overall dimensions :
| length | 1200±5mm |
| width | 1000±5mm |
| height | 760±5mm |
| Appearance | white |
