Product Details:
|
| Capacity: | 1000Litre | Max Working Pressure(MPa): | 0.02 MPa |
|---|---|---|---|
| Material: | HDPE | Usage: | Store Liquid |
| Color: | Blue | ||
| High Light: | Medium liquid chemical storage tank,easy to handle chemical storage tank,Blue plastic chemical storage tank |
||
Specifications:
|
Item No.
|
IBC Tank |
| Color | blue |
| Size | 1200*1000*1150mm |
| Machinery Test Report | Provided |
| Connection method |
Water / Oil / Chemica
|
| Max Working Pressure(MPa) | 0.02 MPa |
Advantage:
Chemical IBCs are transportable bulk containers that are used to store large quantities of hazardous liquids.
Due to the rectangular design of the IBC, this type of chemical container has a larger capacity than a drum. It’s also much easier to stack and transport due to its angular design.

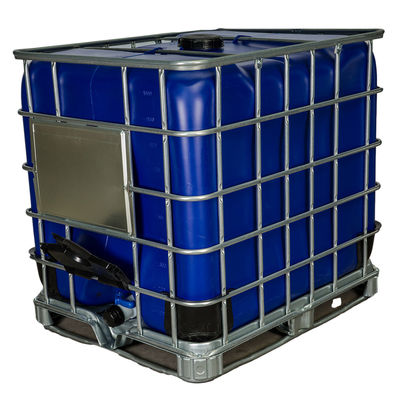

Rigid IBCs are constructed from a hard, durable plastic and feature a metal outer cage that protects the plastic chemical container. They are often used across a range of operations including construction, manufacturing, mining and agriculture.
Detailed Product Description:
Other detailed date for our IBC Tank 1000L
1. Model:BS-1000L
2. UNMark:each IBC Tank will mark exclusive UN Uumber
3. Overall dimensiobn:1200*1000*1150mm(±5mm)
4. Max Allowable Weight: 2012kg
5. Tare Weight:57±1kg
6. Allowable Stacking Weight:4056kg
7. Material of inner Receptacle: HDPE
8. Material of outer Casing :Galvanized steel DCD51D
9. Material of pallet: Galvanized steel DC53D
10. Material of seal :EPDM,FKM,Nitrile,PE
11. Valve and Material:Ball Valve DN50 or Butterfly Valve DN 50
12. Stacking Test Weight;4056kg
13. Dropping Test Height:1.9mm
14. Hydraulic Test pressure:100kpa
15. Vibration Test:Amplitude:25±5%mm,Time Duration:1 hour
