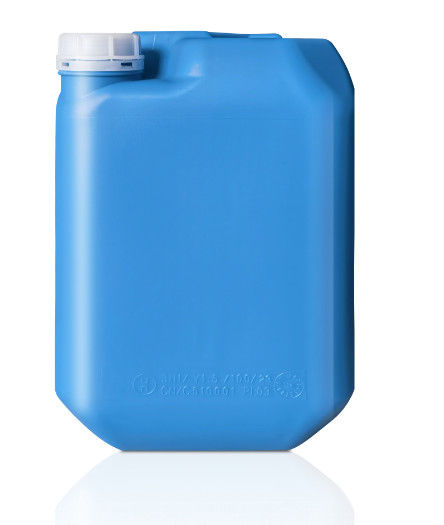

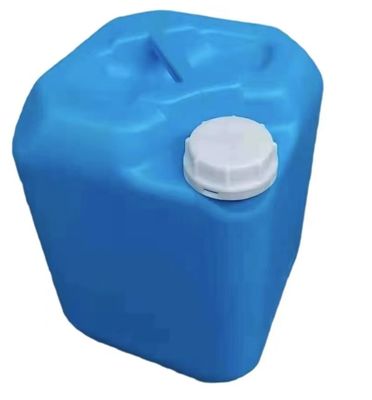

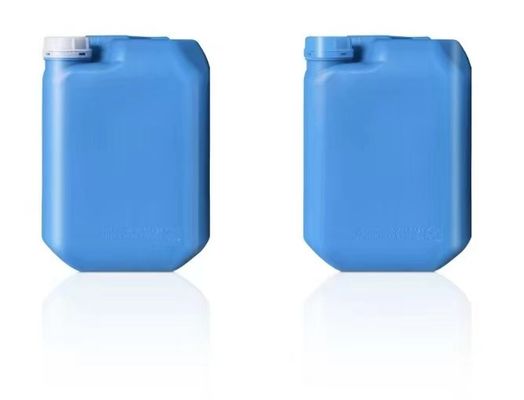

20 Liter Square Closed Plastic Drum HDPE Blue Plastic Chemical Drum

Certification
China Guangzhou Bosen Packaging Technology Co., Ltd. certification
I'm Online Chat Now

20 Liter Square Closed Plastic Drum HDPE Blue Plastic Chemical Drum

20 Liter Square Closed Plastic Drum HDPE Blue Plastic Chemical Drum
20 Liter Square Closed Plastic Drum HDPE Blue Plastic Chemical Drum 20 Liter Square Closed Plastic Drum HDPE Blue Plastic Chemical Drum 20 Liter Square Closed Plastic Drum HDPE Blue Plastic Chemical Drum 20 Liter Square Closed Plastic Drum HDPE Blue Plastic Chemical Drum

Large Image :  20 Liter Square Closed Plastic Drum HDPE Blue Plastic Chemical Drum

Product Details:
Place of Origin: China
Brand Name: Bosen
Certification: UN Certification
Model Number: 20L
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD
Delivery Time: 5-8 work days
Payment Terms: T/T

20 Liter Square Closed Plastic Drum HDPE Blue Plastic Chemical Drum

Description
Material:: HDPE Color:: Blue
Gasket Material:: HDPE Torque:: 25 Nm
Capacity: 20L
High Light:

HDPE closed Plastic Drum

,

Chemical closed Plastic Drum

,

Blue closed Plastic Drum



Specification Sheet(20L Jerrican):



Construction: Tight head ,square,with handle,screw lid
nominal/brimful (L): 20 ≥22
Tare weight(kg): 1.35±0.05
Min Thickness(mm): ≥1.0
Inner opening diameter(mm): 50 ±1
Ratio between thickness of symmetry side: <1.2:1
UN certification: 3H1/Y/100
Material: HDPE
Fabrication: Extrusion blow moulded
Color: Blue



Article description:



20 Liter Square Closed Plastic Drum HDPE Blue Plastic Chemical Drum 0     20 Liter Square Closed Plastic Drum HDPE Blue Plastic Chemical Drum 1





Height  A 393±5
Length B 344±5
Width   C 270±5



Physics and mechanical capability:



Drop test: -18℃,1.5m;No crack, no leakage
Stack test: 40℃,3m,28d;No obvious deformation , no leakage
Leaking test: Air pressure≥20kPa,5min;No leakage
hydraulic pressure test:

hydraulic pressure≥100kPa,30min;No crack, no leakage



Notice:

※Be aware of resistance of used gasket material against filling goods. Other gasket materials are available. The filling temperature is less than 60℃.If the filling good is hot, when filling, please tight the closure aftet it cool down to RT.



20 Liter Square Closed Plastic Drum HDPE Blue Plastic Chemical Drum 220 Liter Square Closed Plastic Drum HDPE Blue Plastic Chemical Drum 320 Liter Square Closed Plastic Drum HDPE Blue Plastic Chemical Drum 4







20 Liter Square Closed Plastic Drum HDPE Blue Plastic Chemical Drum 5







20 Liter Square Closed Plastic Drum HDPE Blue Plastic Chemical Drum 6
