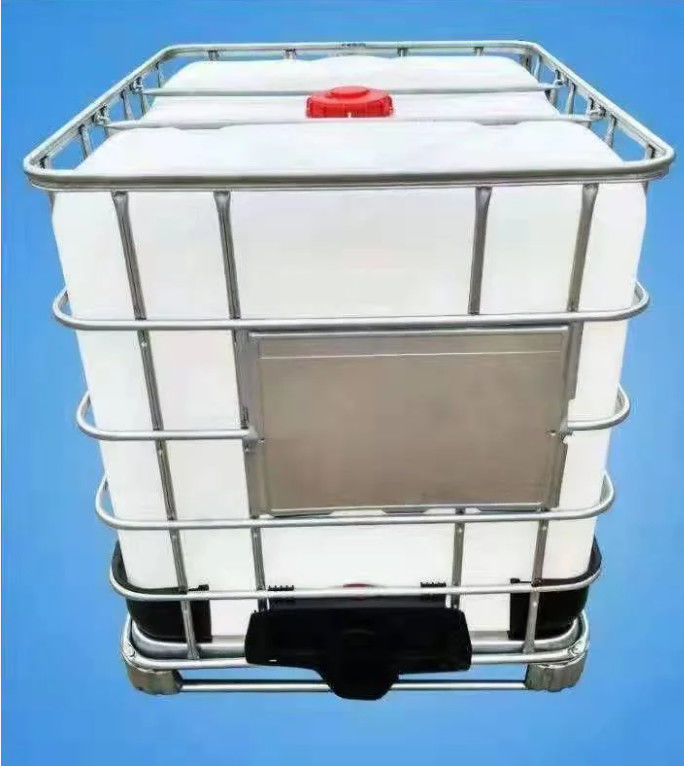

| Usage: | Chemical | Material: | Stainless Steel |
|---|---|---|---|
| Capacity: | 1000Litre | Shape: | Square |
| Color: | Black | Name: | IBC Tank |
| Connection Method: | Water / Oil / Chemica | Type: | IBC TANK 1000L |
| High Light: | 1000 Litre IBC Storage Tanks,Square IBC Storage Tanks |
||
Specifications:
| Item | Specification |
| Rated Volume(L) | 1000 |
| Brimful Volume(L) | ≥1050 |
| Overall Dimension(mm) | 1200x1000x1150 |
| Top cap Mouth diameter | 142(diameter of thread SLCS 160mm,Pitch 7mm) |
| Weight for Inner Tank(kg) | 15.5 |
| Weight for IBC Tank(kg) | 58 |
| Valve outside diameter(mm) | 50 |
| Wall Thickness(min) | ≥1.5mm |
| Outlet Valve(discharge valve) | DN50 ball valve& butterfly valve |
| Height for Pallet(mm) | 120 |
| Height for forklift holes(mm) | 90 |
| Length for forklift holes(mm) | 795 |
Advantage:
Chemical IBCs are transportable bulk containers that are used to store large quantities of hazardous liquids.
Due to the rectangular design of the IBC, this type of chemical container has a larger capacity than a drum. It’s also much easier to stack and transport due to its angular design.
Rigid IBCs are constructed from a hard, durable plastic and feature a metal outer cage that protects the plastic chemical container. They are often used across a range of operations including construction, manufacturing, mining and agriculture.
Detailed Product Description:
Other detailed date for our IBC Tank 1000L
1. Model:YH-1000L
2. UNMark:each IBC Tank will mark exclusive UN Uumber
3. Overall dimensiobn:1200*1000*1150mm(±5mm)
4. Max Allowable Weight:2013 kg
5. Tare Weight:58±2kg
6. Allowable Stacking Weight:4056kg
7. Material of inner Receptacle: HDPE
8. Material of outer Casing :Galvanized steel DCD51D
9. Material of pallet: Galvanized steel DC53D
10. Material of seal :EPDM,FKM,Nitrile,PE
11. Valve and Material:Ball Valve DN50 or Butterfly Valve DN 50
12. Stacking Test Weight;4056kg
13. Dropping Test Height:1.9mm
14. Hydraulic Test pressure:100kpa
15. Vibration Test:Amplitude:25±5%mm
