| Material: | HDPE | Type: | Barrel |
|---|---|---|---|

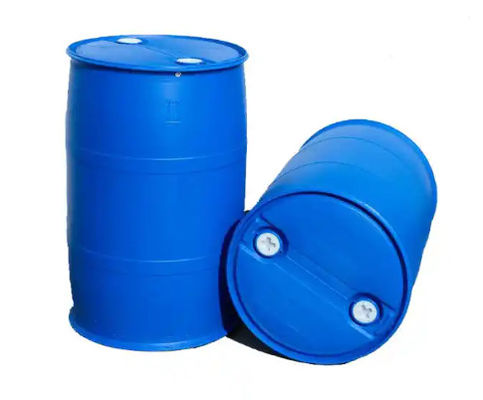

| Product Name: | Plastic Drum | Capacity: | 200L |
| Maximum Diameter: | 580mm | Lid Diameter: | 480mm |
| Total Height: | 920mm | Shape: | Columnar |
| High Light: | HDPE Plastic Barrel 200 Litre,Plastic Barrel 200 Litre Columnar,Closed Top Drum Blow Molding |
||
Specifications:
|
Model number
|
200L-GP
|
|
Material
|
100% HDPE
|
|
Height
|
920±10mm
|
|
Outside diameter
|
580±10mm
|
|
Weight
|
9.5kg, or as your need
|
|
Usage temperature
|
-20-50 ° C
|
|
Color
|
Blue(two layer: white inner wall + blue outer wall)
|
|
Sealing
|
Outer plastic cap + inner silicone ring used for sealing
|
|
Thickness of wall
|
3-5mm
|
|
Injection mouth
|
2 pcs
|
|
Diameter of injection mouth
|
55±2mm
|
|
Usage
|
Class II, Class III dangerous goods,the maximum density of liquid contained:1.8g/m³
|
|
Drop test
|
-18 ° C for 24 hours, 1.8 m drop, no crack, no leakage
|
|
Airtight test
|
20 Kpa Air pressure, kept for 5 minutes, no cracking, no leakage
|
|
Hydraulic test
|
100Kpa air pressure, kept for 30 minutes, no cracking, no leakage
|
|
Stacking test
|
stacking height 3 meters, 40 °C for 28 days, no obvious deformation and damage
|
|
MOQ
|
10 pcs
|
|
Top
|
closed top, both on the top and bottom there is a ring.
|
|
Package
|
plastic bag or as your need
|
|
Sample
|
available
|
Description:
Feature:
It can replace stainless steel, titanium and other metal products containers in a large range. It is an ideal storage and transportation equipment for chemical liquids today, and it is cheap and good in quality. The products are applicable to chemical, dye, pesticide, metallurgy, rare earth, machinery, electronics, textile, food and other industries.
